Temperature Controller

*Only Available for US Customers

A Controller that is Equipped with an IP-66 / NEMA 4X Rated Enclosure for Your Application

Click and drag the image above to rotate

Take Control

Nexthermal has always been a leader in designing efficient heaters and heating elements that maximize the capability of our customers’ machines and applications. Through years of partnership and service with our customers, we have discovered many key aspects of industrial temperature controller requirements in the various industries we serve. With this knowledge and experience, Nexthermal has created its own single zone controller. Now, you can purchase a complete heating system directly from Nexthermal.

Temperature Controller Features

  • Advanced PID with RS-485 input with output to USB
  • Easy Plug-and-Play with quick installation
  • White PV display with LCD screen for improved visibility
  • Universal input which supports most standard TC / RTD / linear outputs
  • NEMA 4X Rated vented enclosure
  • SSR controller with zero crossing
  • Fast response time of 80ms

Temperature Controller Safety

  • IP-66 rated polycarbonate enclosure
  • Dedicated fuse for the heater and the panel
  • Door with key-locking system
  • 110-240V power input to panel
  • Alarm output
  • Separate switch and LED light for controller and heater

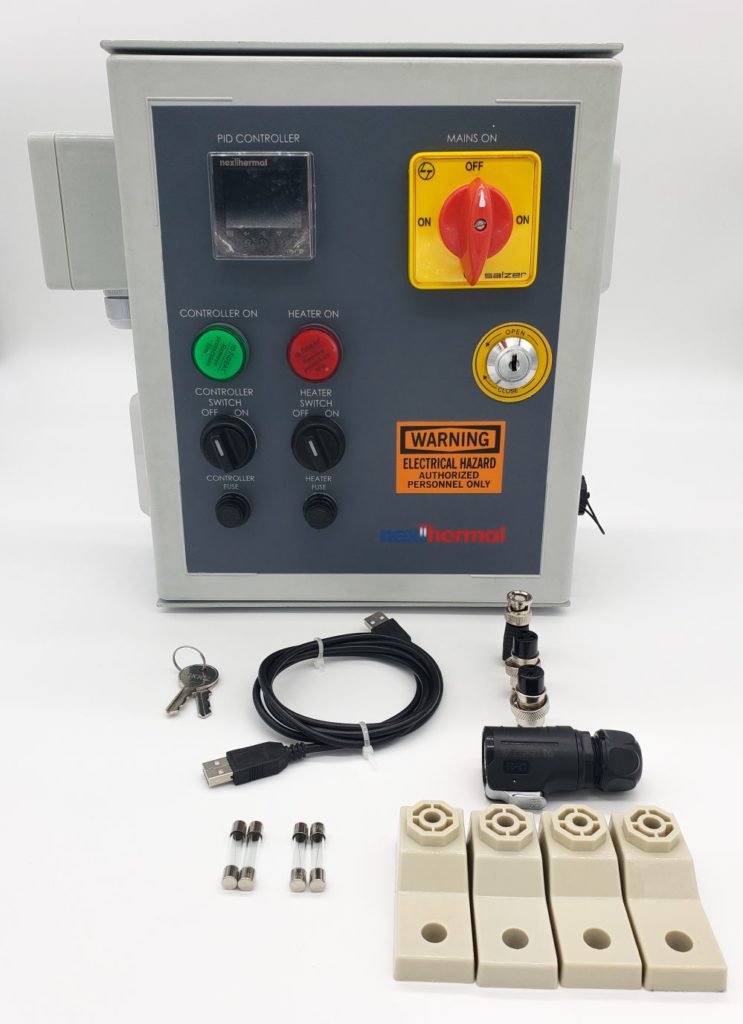

Nexthermal Controller Accessories

What’s Included?

  • Single-Zone Controller
  • 3 Pin Heater Connector
  • RS-485 Connector
  • 3-Pin RTD/TC Connector
  • Fuse (1 Amp)
  • Fuse (15 Amps)
  • Male-to-Male USB Cable
  • 2-Pin Alarm Connector
  • Tab Fitting (x4)
  • Key (x2)
Whether you need a single zone controller, thermocouple controller, or a specific type of industrial temperature controller, our team at Nexthermal has you covered.

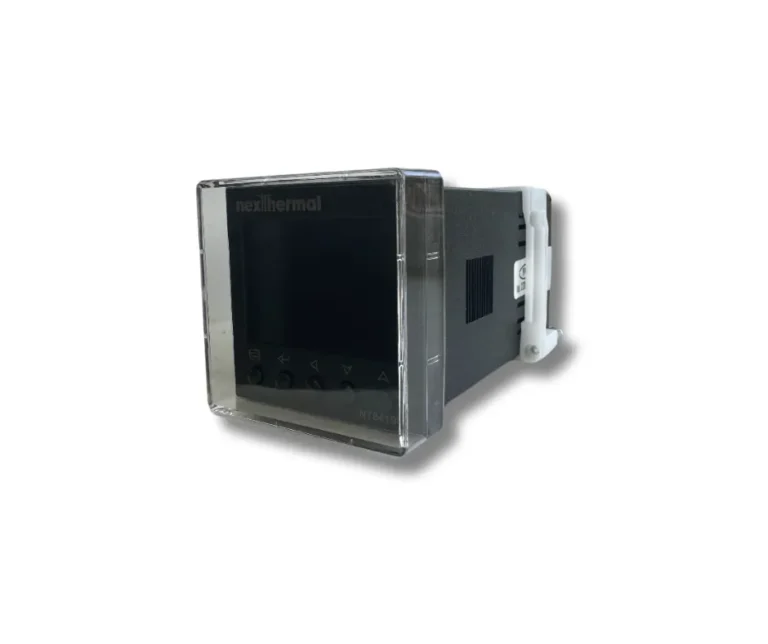

Pid controller

Just looking for the PID Controller?

Accuracy: 0.1
Temperature Range: -999 - 9999°C
Power Supply: 100 - 240VAC
Display Method: Liquid Crystal Display (LCD)
Input Type: K, S, R, E, J, B, N, T, B,WRe3-WRe25, Cu50, Pt100, 4-20mA, 0-5V
Control Output: Relay ,SSR,TRIAC ,thyristor phase-shift trigger, 4-20mA,0-5V,0-10V
Panel Cutout Size: 45*45mm
Panel Size: 48*48mm
Control Mode: On-off control, fuzzy logic PID algorithm, Program generator
Color: Black

Contact us today at
(269) 964-0271 or send an email to sales@nexthermal.com.

Specview

By combining Nexthermal's controllers with SCADA software, you gain the power to:

  • Achieve consistent and precise heating, leading to superior product quality.
  • Reduce energy consumption for lower operating costs.
  • Streamline production processes, ultimately boosting overall productivity.
